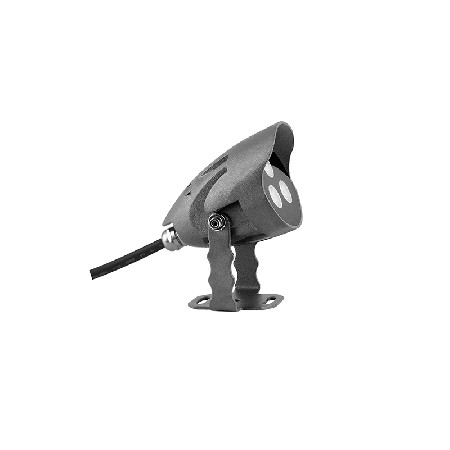

HT-TGY60

2020-05-14 353

1. This product is processed by a mechanical hydraulic device to connect the glass, lamp body and other parts. There is no need for a drop of glue in the whole process, which can make the protection grade of the lamp up to IP67, so as to avoid the damage of glue and volatile matter to the light source.

2. The air pressure balance device installed on the lamp body can balance the internal and external air pressure of the lamp, solve the problem of internal and external pressure difference, and remove the condensation phenomenon caused by the lamp after working in the outdoor environment; Ensure the service life of lamps.

3. The overall streamline design of the lamp has undergone multiple process treatments, so as to achieve the combination of high-strength ultra white tempered glass and arc lamp body

4. The reasonable electronic circuit design of International LED chips combined with excellent heat dissipation structure ensure the service life of lamps,

5. The excellent support structure design ensures the flexible adjustment of the lamp, and the serrated m support locking device makes the support more secure,

6. In addition to the novel appearance design, the bottom of the aluminum substrate and the shell are hard linked to ensure good contact between the lamp plate and the shell, which can quickly dissipate heat, so as to reduce light attenuation and delay service life.

7. The surface adopts high-temperature polyester powder spraying process to ensure the weather resistance of lamps for long-term outdoor use. The flexible production process can customize the appearance color according to the engineering situation.

8. The lens customized by international lens manufacturers provides technical and hardware support for the optimization of the secondary optical lens of the lamp, ensuring that the lamp has excellent optical efficiency performance!

9. High temperature and high humidity (temperature 85 ℃ and humidity 85 ℃) aging test for more than 2000 hours to ensure the reliable performance of lamps in outdoor environment for long-term use.


基本参数  Basic Parameter

功   率: Power:3W/4W/6W/9W
输入电压 lnput VoltageDC24V/AC220V
外观颜色 Appearance  与建筑同色
主体材质 Main Material YI113低铜高耐蚀压铸铝合金+超白钢化玻璃
产品尺寸 product sizeΦ60MM(不含支架高度)
防护等级 IP Code IP65


光电参数  Electric Parameter

芯片规格 The LED chip specificationCREE/OSRAM
色温     Color Temperature 单色可选/RGBW
光通量   Luminous flux 810LM
使用寿命 life / duration>50000小时
光束角   Beam Angle 3-120°


环境参数  Environmental parameters

工作环境 Operating Environment —45°C 到65°C


配光说明:


配置选型参数:

序号型号光源类型光源色温光源数量系统功率芯片/光源品牌
1HT-TGY60大功率 LED单色可选13WCREE / OSRAM
2HT-TGY60大功率 LED单色可选33WCREE / OSRAM
3HT-TGY60大功率 LED单色可选36WCREE / OSRAM
4HT-TGY60单颗RGBRGB 33WCREE / OSRAM
4HT-TGY60RGB三合一RGB 33WCREE / OSRAM
5HT-TGY60RGB三合一RGB 13WCREE / OSRAM
6HT-TGY60单颗RGBRGB 39WCREE / OSRAM
7HT-TGY60RGBW三合一 RGBW14WCREE / OSRAM
8
备注如以上配置不在选定范围内, 可根据要求特别定制。
